Photo Credit: Mrs. Mona Director and Mr. Vijay Agarwal, Chairperson
SC FORMA SA is a 75-year-old company in the Agricultural and Automotive Domain with a traditional European legacy. It is based in the Romanian township of Botosani and is registered on the Romanian stock exchange. SC FORMA SA lately, known as the Botosani MECHANICAL CENTER, has a rich Romanian Heritage and has been a Major Centre for the development of agricultural equipment and components The former TECHNOLOGY and MECHANICAL CENTER later called MAIA (Mechanical companies for agricultural machinery) became a joint-stock company and the ownership right was changed in the late 1990s.
In 2000 FORMA became a private equity company and AVAS sold all its stocks to a Romanian investor. In 2009 it was acquired by Action Construction Equipment Ltd. SC FORMA has a share capital of 1,075,511 40 lei, with the current trade symbol as FORMA The current majority shareholder, Action Construction Equipment (ACE) holds 89.5183% of the shares of SC FORMA SA
SC FORMA SA is located in the northeastern part of Romania UKRAINE is only 75 km away from the factory. The plant is located in the picturesque industrial area of Botosani facing the hills and is less than a kilometer from the train station. It has a vast area of over 32500 sq m.
HERITAGE OF TECHNICAL & MECHANICAL EXCELLENCE
- Plant located in 10 acres area.
- Russian manufacturing DNA of Ruggedness and Robustness
- European quality – DNA of Dependability, Reliability and Efficiency
- 500 machines, CNC. Jigs & fixtures, Broaching Machines Toolroom
- Giant Forging hammers
- Conveyorised paint shop
- Giant automated warehouses
PRODUCT RANGE
- Tractors and agricultural implements
- Car parts, car body, sheet metal panels
- Metal forging tracks for tanks and armoured vehicles
REASONS FOR ACQUISITION
Mr. Vijay Agarwal, Chairman & Managing Director acquired the FORMA Plant in Romania because he was impressed by their Manufacturing facilities, versatility of Machines installed and technology they had. Their products were always known for their Ruggedness, Robustness. Dependability, Reliability and Efficiency.
He also felt that this Strategic acquisition would facilitate entry into European and CIiS regions. Mr Vijay Agarwal respects their skilled work force and also salutes their enthusiasm and ability to work.
He was also impressed by the fact that the plant produced lots of assemblies and aggregates for the Russian armoured Vehicle.
The Vision was to create a presence in Europe with a large product portfolio of ACE and to update the current product range to the quality and efficiency of present competitors in the market. This could have been only possible through technical knowhow of FORMA.
PRODUCT LAUNCH PLAN
We are happy to recreate the FORMA brand for the world by India because we have tremendous confidence in the DNA of the brand.
FORMA will be built in India with European Technology and exported to the world in line with Honourable Prime Minister Shri Narendra Modi’s goal of “Make in India for the World” vision.
PLAN
1st year – 5 Countries (500 Units)
2nd year – 15 countries ( 1000 Units)
PRODUCT RANGE
- Range of product from 26HP to 100 HP
- Available in both 2 Wheel Drive & 4 Wheel Drive configurations
- Phase 1: 40 HP to 50 HP
- Phase 2: 60 HP to 90 HP
- Phase 3: 26 HP and 100 HP
PRODUCT FEATURES
- Aerodynamic shape
- Robust Structure
- Projector Head Lamps
- Power Steering
- R- PTO
- High Ground Clearance
- High Torque
CONNECTED TRACTOR / IOT /TELEMATICS
- Location Marking
- Live Tracking
- Geo Fencing
- Actual v/s IDLE State of Vehicle
- Fuel Indicator
- Engine Run Hours
- Ignition switch on or off
- Service Reminder
- Filter choking
- Start -Stop Track
- Engine Temperature
- Battery low warning

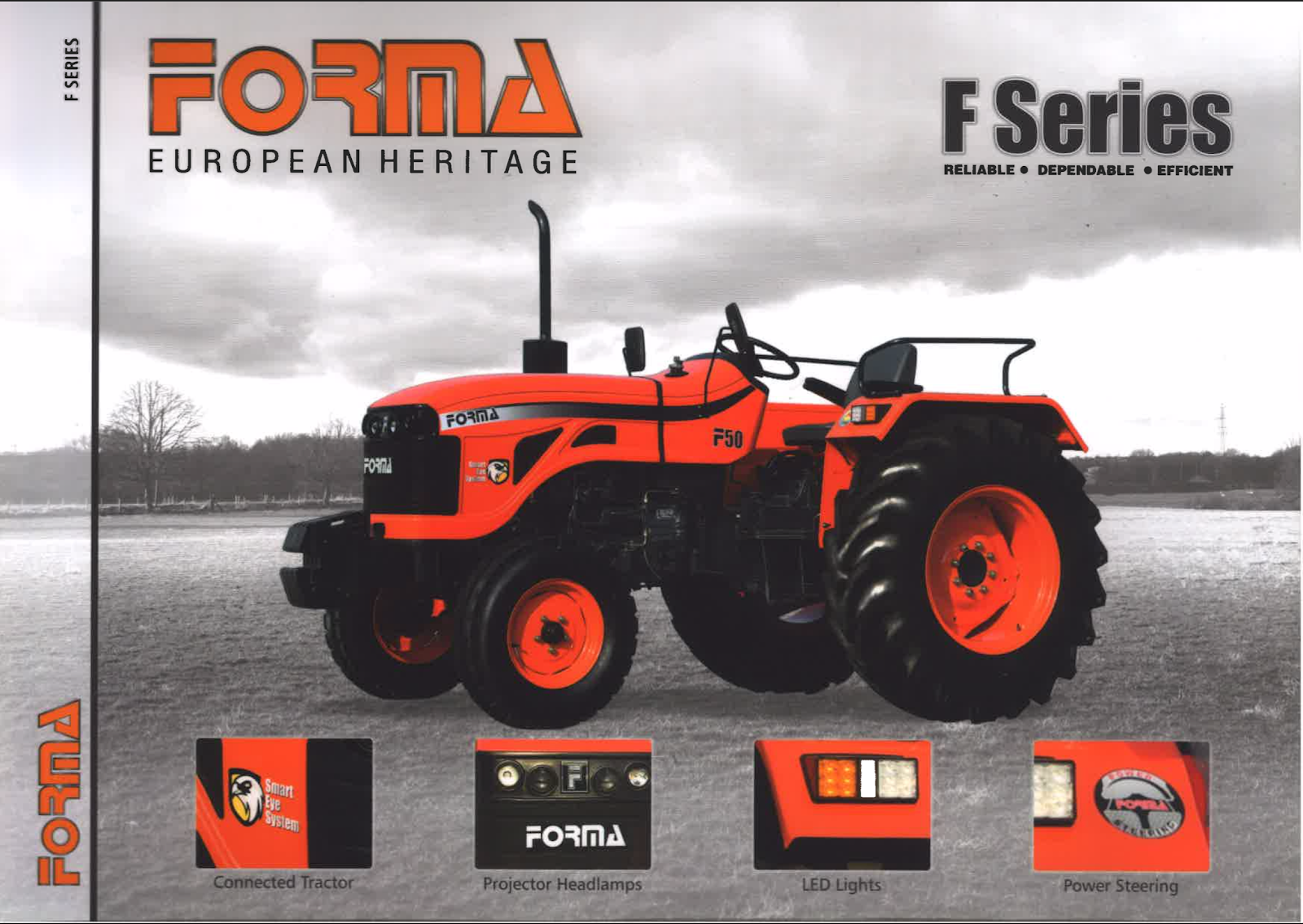

![](https://toa.turtlecap.com/wp-content/uploads/2021/03/18-3-2021-4-1024x768.jpg")
F Series- Specifications
MODEL F40
Operator Station: Non-cab
Traction: 2WD/MFWD
ENGINE
Model: A40
Type: TREM IRA. Water Cooled, 4 Stroke, Turbocharged, DI, Diesel Engine
Displacement (cc): 2858
Engine HP: 40
Fuel System: Inline Fuel Injection Pump
Fuel Capacity (I): 55
Alternator (Amp): 42
TRANSMISSION
Standard: 8+2
Differential Lock: Available in 2WD as Optional
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: Cat II/I
Draft Sensing or Lift Control: Top link sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 1200
AXLES
Frant: 2WD or MFWD with Limited Slip
PTO
PTO Speed: 540 RPM
HYDRAULICS
System Type: Open center
Number of Rear Remotes: 2
Hydraulic Pump flow (Ipm): 34
DIMENSIONS & WEIGHTS
Wheelbase (2WD):1960
Overall Length: 3600
Overall Height: 2300
Tractor Weight without Ballast (2WD): 1930
Ballast
Front Weights (Optional): 22 kg x 4 Qty.
TIRES
Front (2WD): 6.00×16
Rear (2WD): 13.6
Front (MFWD):8.00×18
Rear (MFWD):13.6×28
MODEL F45
Operator Station: Non-cab
Traction: 2WD/MFWD
ENGINE
Model: A45
Type: TREM IRA. Water Cooled, 4 Stroke, Turbocharged, DI, Diesel Engine
Displacement (cc): 2858
Engine HP: 45
Fuel System: Inline Fuel Injection Pump
Fuel Capacity (I): 55
Alternator (Amp): 42
TRANSMISSION
Standard: 8+2
Differential Lock
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: Cat II/l
Draft Sensing or Lift Control: Top Link sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 1600
AXLES
Front: 2WD or MFWD with Limited Slip
PTO
PTO Speed: 540 RPM
HYDRAULICS
System Type: Open and Center
Number of Rear Remotes: 2
Hydraulic Pump flow (Ipm): 34
DIMENSIONS & WEIGHTS
Wheelbase (4WD): 1960
Overall Length: 3660
Overall Height (4WDI) with ROPS: 2300
Tractor Weight without BALLAST (4 WD): 1950
Ballast
Front Weights (Optional): 22 kg x 4 Qty.
TIRES
Front (2WD): 6.00 x 16
Rear (2WD): 14.9 x 28
Front (MFWD): 8.00 x 18
Rear (MFWD): 13.6 x 28
MODEL F50
Operator Station: Non-cab
Traction: 2WD/MFWD
ENGINE
Model:A50
Type: TREM IRA. Water Cooled, 4 Stroke, Turbocharged, DI, Diesel Engine
Displacement (cc): 3065
Engine HP: 49.5
Fuel System: Inline Fuel Injection Pump
Fuel Capacity (I): 55
Alternator (Amp): 42
TRANSMISSION
Standard: 8+2
Differential Lock: Optional in Both
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: CAT II/I
Draft Sensing or Lift Control: Top Link Sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 1800
AXLES
Front: 2WD or MFWD with Limited Slip
PTO
PTO Speed: 540 RPM
HYDRAULICS
System Type: Open Centre
Number of Rear Remotes: 2
Hydraulic Pump flow (Ipm): 39
DIMENSIONS & WEIGHTS
Wheelbase (2WD): 1968
Overall Length: 3660
Overall Height (2WD): 2310
Tractor Weight without Ballast (2 WD): 2010
Ballast
Front Weights (Optional): 22 kg x 4 Qty.
TIRES
Front (2WD): 7.50 x 16
Rear (2WD): 14.9 x 28
Front (MFWD): 8.3 x 24
Rear (MFWD): 14.9 x 28
MODEL F60
Operator Station: Non-Cab
Traction: 2WD/MFWD
ENGINE
Model: A65
Type: TREM IIIA, Water Cooled, 4 Stroke, Naturally Aspirated, DI, Diesel Engine
Displacement (cc): 4088
Engine HP: 61.2
Fuel System: Inline fuel injection pump
Fuel Capacity (I): 65
Alternator (Amp): 42
TRANSMISSION
Standard: 8+2/12+12
Differential Lock: Available
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: CAT II/I
Draft Sensing or Lift Control: Top Link Sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 2000/ 2200kg
AXLES
Front: 2WD/MFWD
PTO
PTO Speed: 540. 540E
HYDRAULICS
System Type: Open and Center
Number of Rear Remotes: 4
Hydraulic Pump flow (Ipm): 49.5
DIMENSIONS & WEIGHTS
Wheelbase (4WD): 2200/2235
Overall Length: 3845/3990
Overall Height (4WDI) with ROPS: 2500/2600
Tractor Weight without Ballast (4WD): 2515/2785
Ballast
Front Weights (Optional): 22kg x 4 Qty.
TIRES
Front (2WD): 7.50 x 16
Rear (2WD): 16.9 x 28
Front (MFWD): 9.5 x 24
Rear (MFWD): 16.9 x 28
MODEL F75
Operator Station: Non-Cab
Traction: 2WD/MFWD
ENGINE
Model: A75 TC
Type: TREM IIIA, Water Cooled, 4 Stroke, Turbocharged, DI, Diesel Engine
Displacement (cc): 4088
Engine HP: 74.8
Fuel System: Inline fuel injection pump
Fuel Capacity (I): 65
Alternator (Amp): 42
TRANSMISSION
Standard: 12+12
Differential Lock: Available
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: CAT II/I
Draft Sensing or Lift Control: Top Link Sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 2200kg
AXLES
Front: MFWD
PTO
PTO Speed: 540, 540E
HYDRAULICS
System Type: open and Center
Number of Rear Remotes: 4
Hydraulic Pump flow (Ipm): 49.5
DIMENSIONS & WEIGHTS
Wheelbase (4WD): 2235
Overall Length: 3990
Overall Height (4WDI) with ROPS: 2650
Tractor Weight without Ballast (4WD): 2841
Ballast
Front Weights (Optional): 22kg x 4 Qty.
TIRES
Front (MFWD): 11.2 x 24
Rear (MFWD): 16.9 x 30
MODEL F90
Operator Station: Non-Cab
Traction: 2WD/MFWD
ENGINE
Model: A90 TC
Type: TREM IIIA, Water Cooled, 4 Stroke, Turbocharged with intercooler, DI, Diesel Engine
Displacement (cc): 4088
Engine HP: 89.8
Fuel System: Inline fuel injection pump
Fuel Capacity (I): 65
Alternator (Amp): 42
TRANSMISSION
Standard: 12+12
Differential Lock: Available
MFWD Engagement: Mechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch Category: CAT II/I
Draft Sensing or Lift Control: Top Link Sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at bailend: 2500 kg
AXLES
Front: MFWD
PTO
PTO Speed: 540. 540E
HYDRAULICS
System Type: Open and Center
Number of Rear Remotes: 4
Hydraulic Pump flow (Ipm): 49.5
DIMENSIONS & WEIGHTS
Wheelbase (4WD): 2265
Overall Length: 4020
Overall Height (4WD) with ROPS: 2670
Tractor Weight without Ballast (4WD): 2976
Ballast
Front Weights (Optional): 22kg x 4 Qty.
TIRES
Front (MFWD): 12.4 x 24
Rear (MFWD): 18.4 x 30
